Features
Single chip design, integrated ADAS, DSM, BSD
Support Operate and Maintain by Maintenance Tool
H.265 video encoding, high compression ratio, high image quality,save more storage spaces and save more bandwidth when transmitting data
Supports 8CH 1080P/720P AHD
Support AHD/TVI/CVI/IPC/ Analog video inputs
Built-in G-sensor, monitoring of vehicle driving behavior
Support reversing image ranging assistance
Support image horizontal and vertical mirror adjustment
Unique GPS drift suppression algorithm
Input pulse automatic calibration algorithm
Power supply
Professional vehicle power supply 8-36V DC wide voltage
Low voltage, short circuit, reverse connection and other protection
Support intelligent power management identification, low power automatic shutdown, flameout low power consumption
Data Storage
Built-in super capacitor prevents data loss and disk damage
A special file management adopted to encrypt data to effectively protect data security
Supports 2.5 inch HDD/SSD and SD cards, support SD card maximum storage 512 GB,HDD/SSD maximum storage 4TB
Wireless module
Built-in GPS/BD/GLONASS module, high sensitivity, fast positioning
Built-in 4G module, support LTE/HSPA/WCDMA
WIFI module (optional),support 802.11b/g/n, frequency 2.4ghz

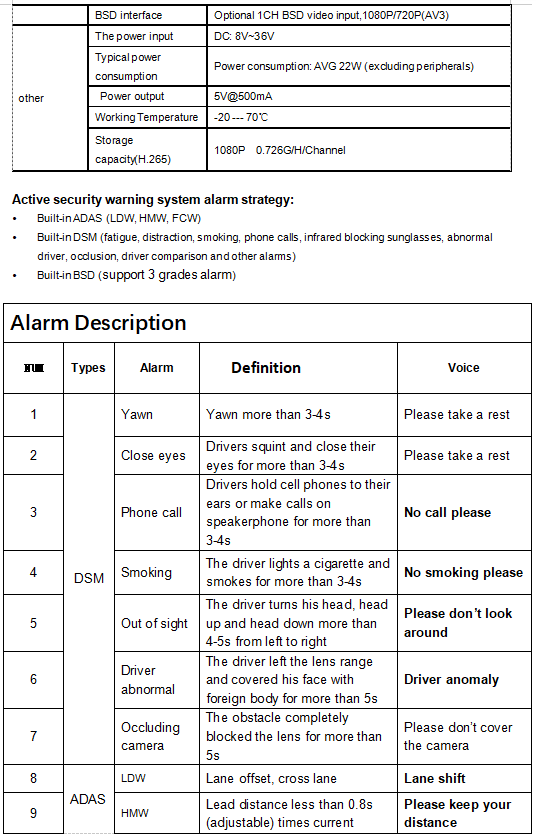

Active safety early warning system
Built-in ADAS (Advanced Driver Assistance Systems),(include: Headway Monitoring Warning, Forward Collision Warning,Lane Departure Warning,etc.,)
Built-in DSM (Driver Status Monitor) ,(include :fatigue, distraction, smoking, phone calls, infrared blocking sunglasses, abnormal driver, occlusion, driver comparison and other alarms)

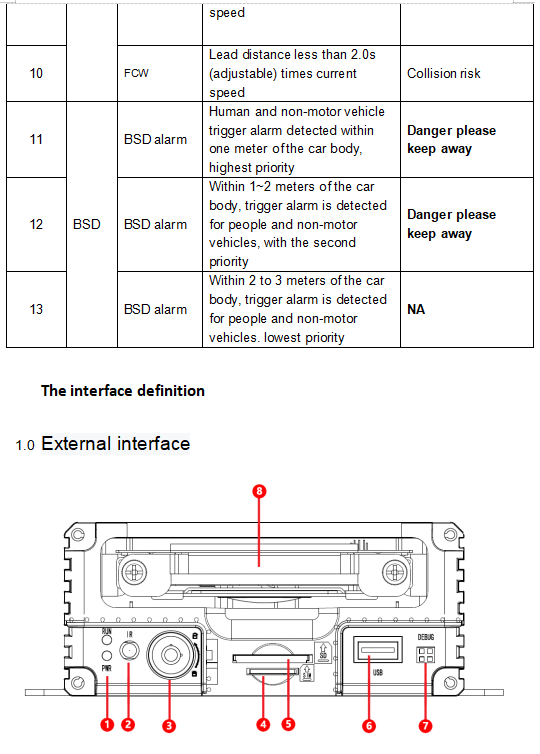

Built-in BSD (Blind Spot Detection) ,(support 3 grades/levels alarm
Intense driving assistance
Support speedup, slowdown, sharp turn alarm and upload platform
Support rollover, collision alarm and upload platform

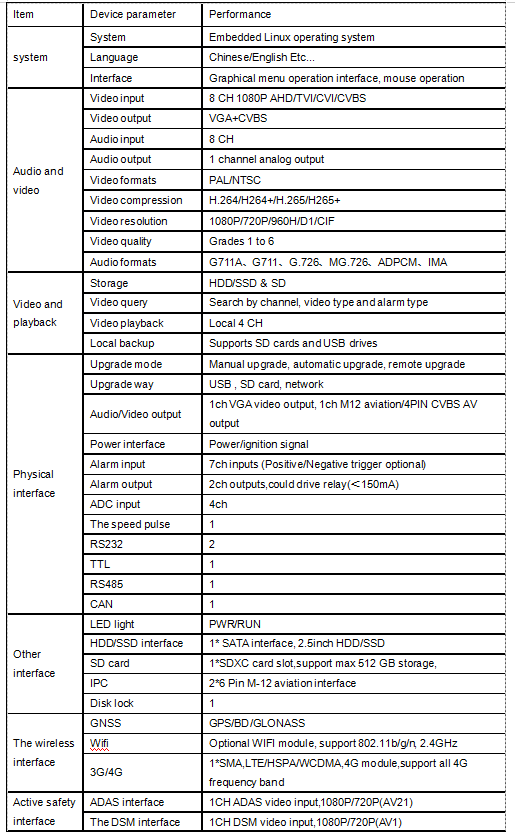

Parameters
