Features
Single chip design
H.265/H.264 encoding, high compression ratio
Supports four CH 1080P AHD
AHD/TVI/CVI/CVBS video inputs
1CH synchronized AV output, 1CH VGA output
Support image horizontal and vertical mirror adjustment
Support reversing image ranging assistance
Unique GPS drift suppression algorithm
Power
Professional In-Vehicle power design, 9-32V DC Wide Voltage Range
Multi protection circuits like under-voltage, short, reversed plug-in
Smart power management system, shutdown under low voltage, low consumption when standby
Data Storage
Special file management system to encrypt and protect the data
Proprietary technology to detect the bad track of the SD card which can make sure the continuity of video and long service life of the SD card
Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage
Support SD card storage, maximum 512G
Support 2.5 inch HDD/SSD, maximum 4TB
Transmission Interface
Support GPS/BD optional, high sensitivity, fast positioning
Built-in 4G module, support LTE/HSPA/WCDMA
WIFI module (optional), frequency 2.4ghz

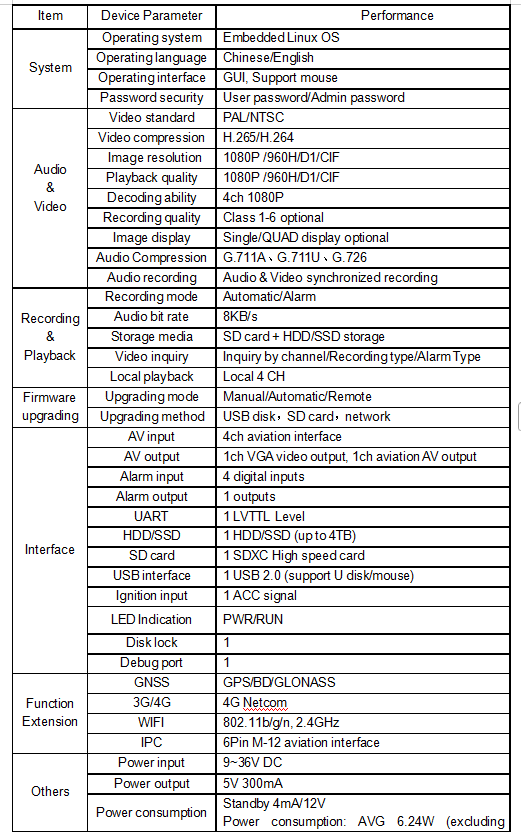

Parameters
